Product Description

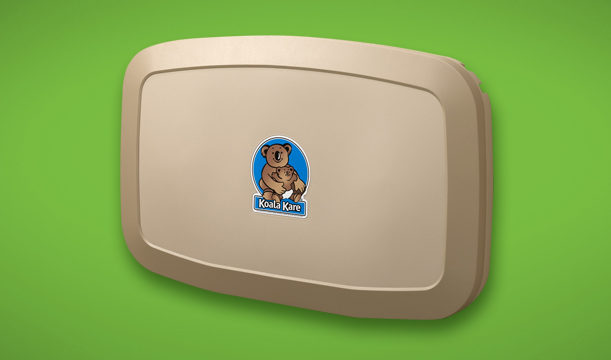

Constructed of polypropylene and a unibody steel chassis, this baby changing station supports 200 lbs with minimal deflection. The steel-on-steel hinge has greater resistance to wear and improved durability and the gas spring mechanism ensures smooth open and close of the unit. Its sleek design and color palette matches modern restroom design and décor. The dual liner cavity with lock minimizes operator refills and discourages potential vandalism. The product includes child protection straps and bag hooks. ASTM and EN compliant. Meets ADA requirements when mounted properly. Bed surface exclusively contains Microban® antimicrobial, reducing odor causing bacteria. Liner dispenser features two liner cavities. Each cavity holds 25 liners, for a combined total of 50 liners per unit. Constructed with 16% recycled materials; contributes to LEED certified building requirements.
-
Unit Dimensions: 35 3/16” W x 22¼” H (893 mm x 565 mm)
-
Depth (closed): 4” (102 mm) Extension (open): 23 3/16”(589 mm)
-
Shipping Weight: 28 lbs
-
Model number KB200
Product Details
CSI Division: | 10 28 13.13 |
---|---|
CSI Division Title: | Commercial Toilet Accessories |
Product Cut Sheet/Specs/Demo: | http://www.bobrick.com/Documents/KB200SS_td.pdf |
Related Keywords
Related Section Numbers
- 2010 ADA Standards for Accessible Design Pocket Guide, (2)
- 1991 ADA Standards for Accessible Design, (3)
- 2012 Florida Accessibility Code for Building Construction Pocket Guide, (2)
- 2013 California Standards for Accessible Design Pocket Guide, (2)
- Guidance on the 2010 ADA Standards for Accessible Design, (1)
- ABA Accessibility Standard for GSA Facilities Pocket Guide, (2)
- Technical Memorandum TM 2013-15 Baby Changing Tables, (4)
Bobrick Koala Kare Horizontal, Wall-Mounted Baby Changing Station KB200 Revit Model
View: | 3D object |
---|---|
File type: | rfa |
